🎣 Who doesn't love Fish Tales? It's one of my favourite games to play, and one of my favourite to work on as well! This one started off as a service call to install new rubber rings, but turned into a bigger service to fix much more than that.

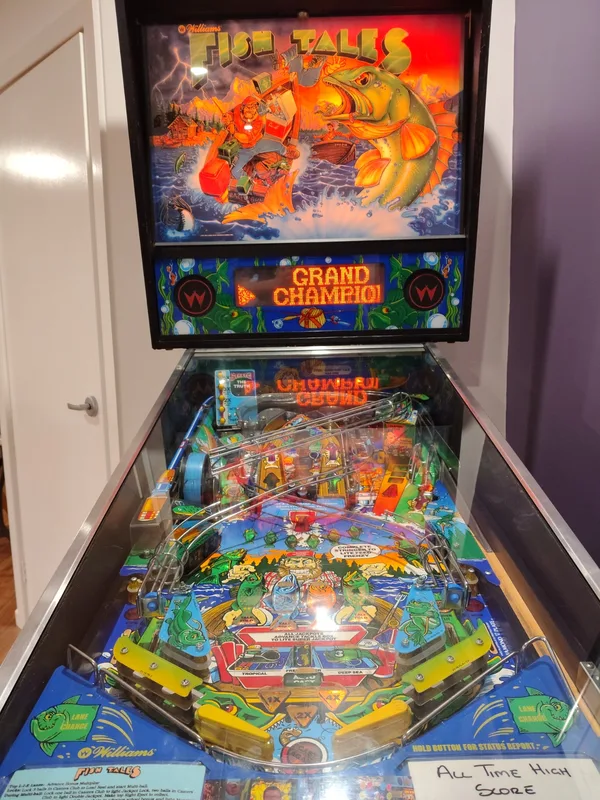

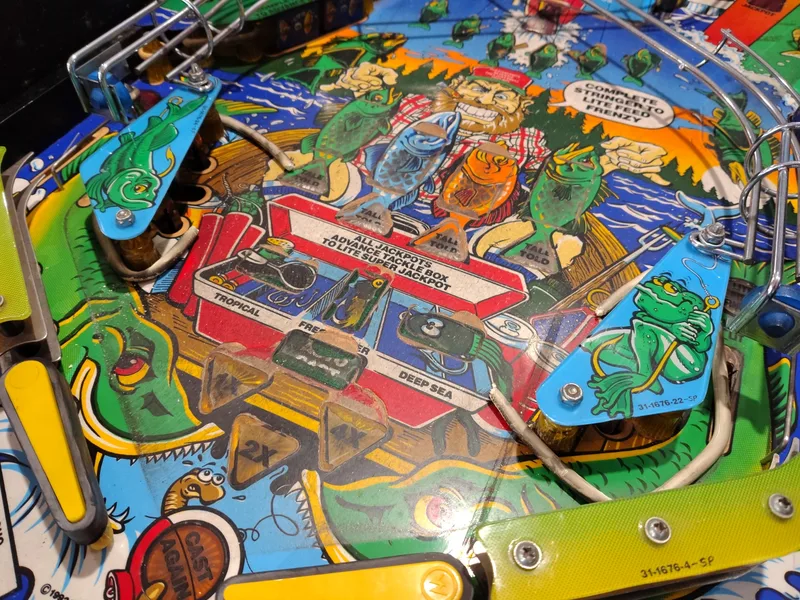

First, a playfield teardown to get to all of the old rubbers and give everything a good clean. Plenty of broken lamps to replace while we're at it, too. This took a fair while due to the disassembly, but once it was back together it was looking much better!

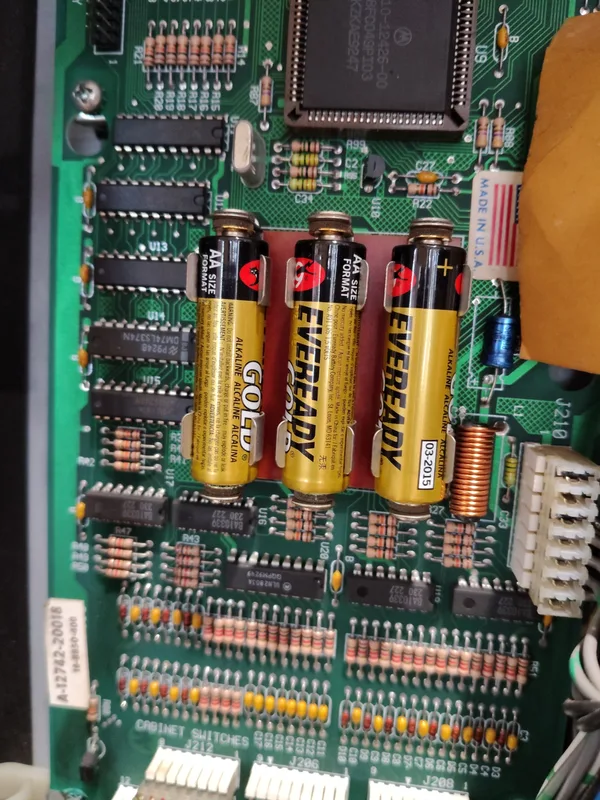

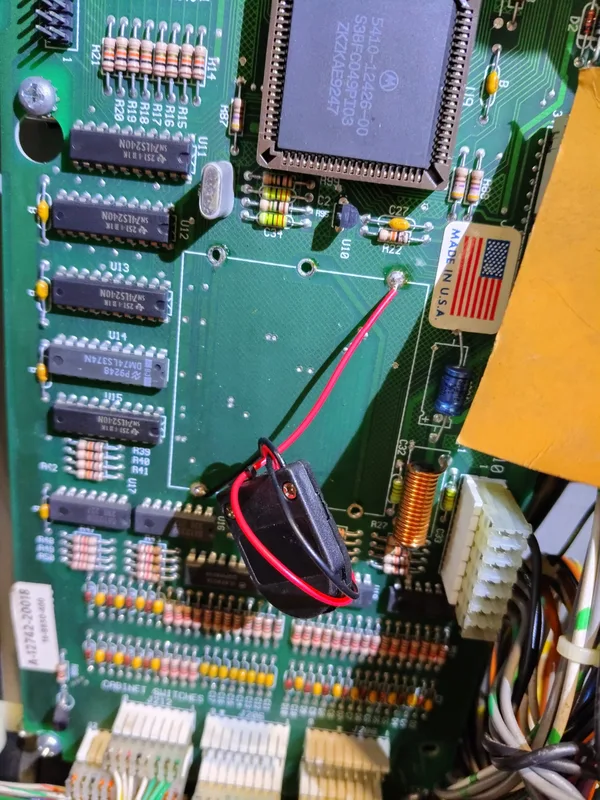

A cursory check of the backbox as the game was not retaining memory. The batteries expired in 2015, so that's no surprise! The original battery holder was still on the CPU board with a bit of corrosion on the lower terminals. Thankfully, no damage to the board itself, so a new lithium battery holder was installed.

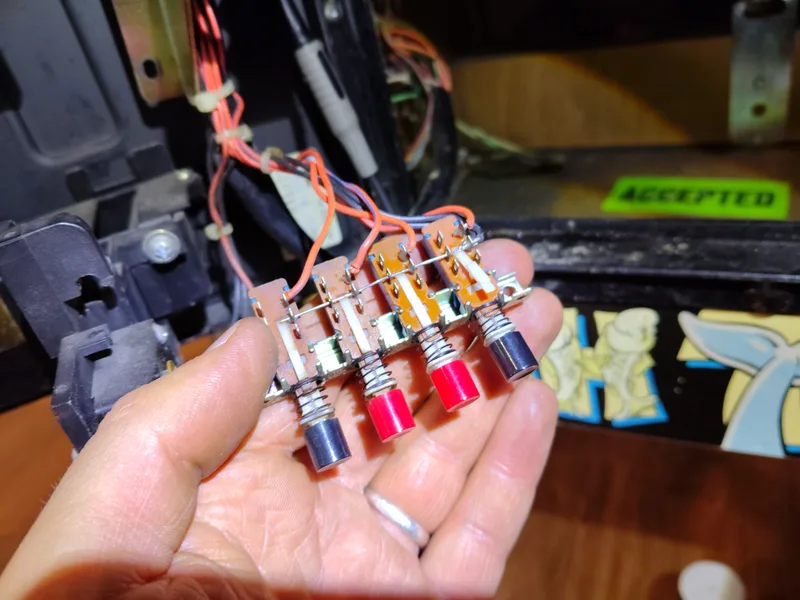

It was impossible to drop the volume down, or do much within the test menus, as one of the diagnostic switches wasn't working. No problem with the connectors or CPU board; the switch itself had died. Replaced it.

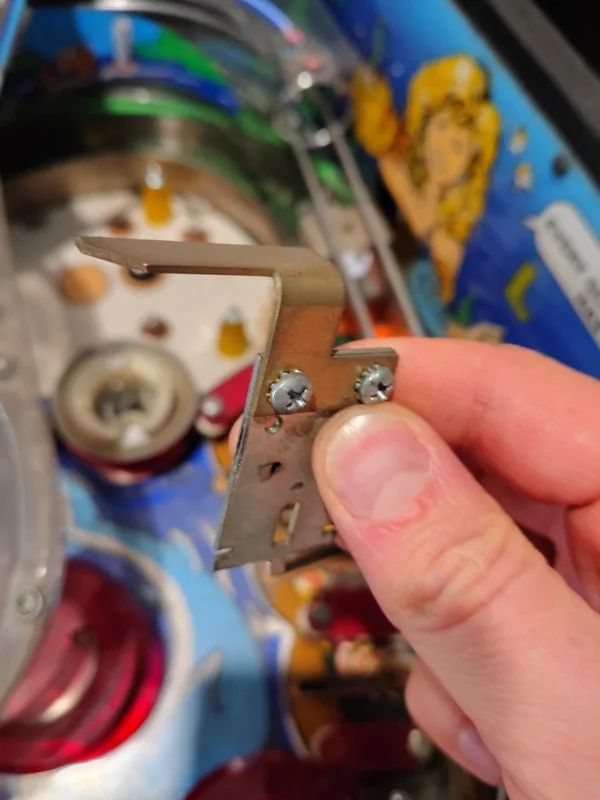

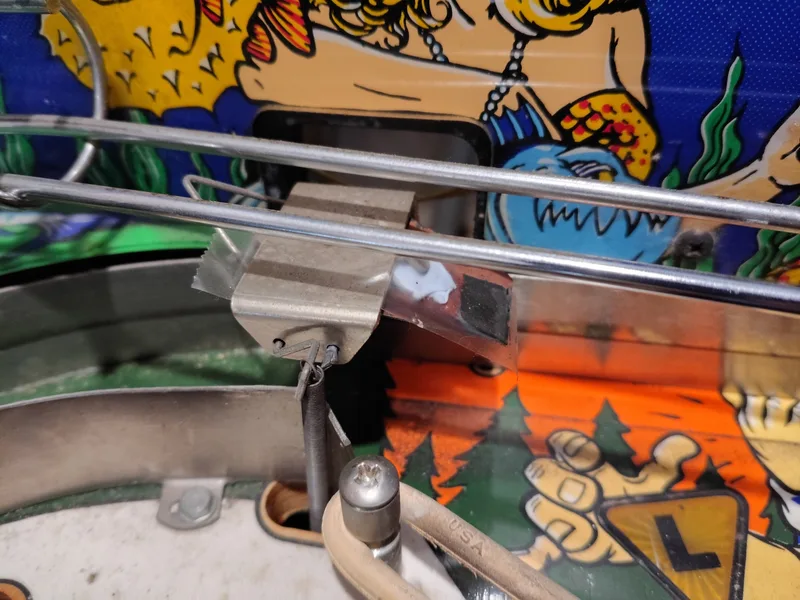

Playtesting revealed a few more issues. The flap at the top of the playfield was taped in the up position. That's a weird mod! This gate is controlled by a coil which opens the gate on ball launch, and also when shooting the right orbit when long cast is lit. Otherwise it is meant to block balls so you can enter the pop bumpers from a right orbit shot. It appeared to be propped open because balls were not making it around the orbit on launch. But this was nothing to do with the gate. The balls were bouncing off the ball guide at the very top edge of the playfield, losing momentum, and falling into the LIE lanes. This was caused by the metal ball guide at the top right of the playfield. It needed bending to guide the ball properly towards the orbit lane. A very fiddly adjustment which needed multiple bends to get right.

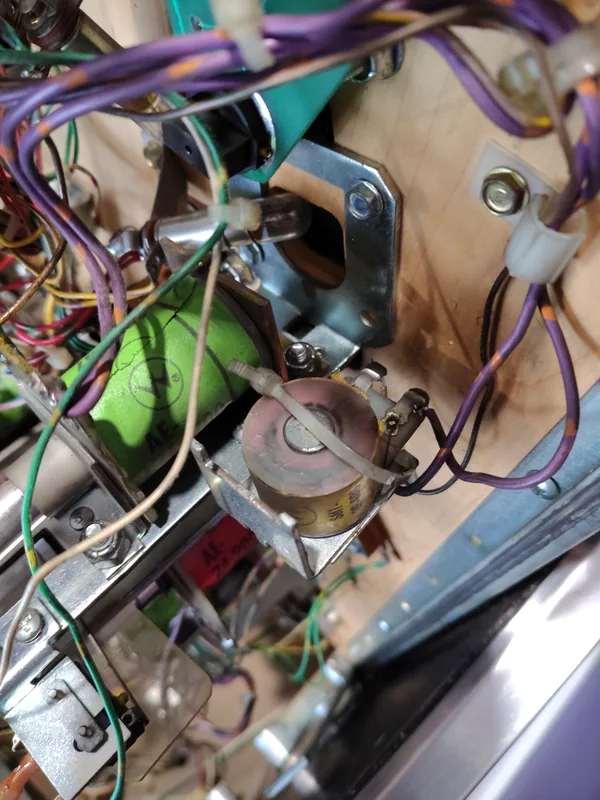

Next: the drop target was not working correctly. It has a secondary coil which pushes the target down to open the shot to the Caster's Club. This coil wasn't working. Taking a look at the assembly, I noticed the armature which pushes on the drop target to drop it was totally missing. Found it lying in the bottom of the cab. It needed a new extension spring and brass armature. Both were installed and the assembly was working as intended again.

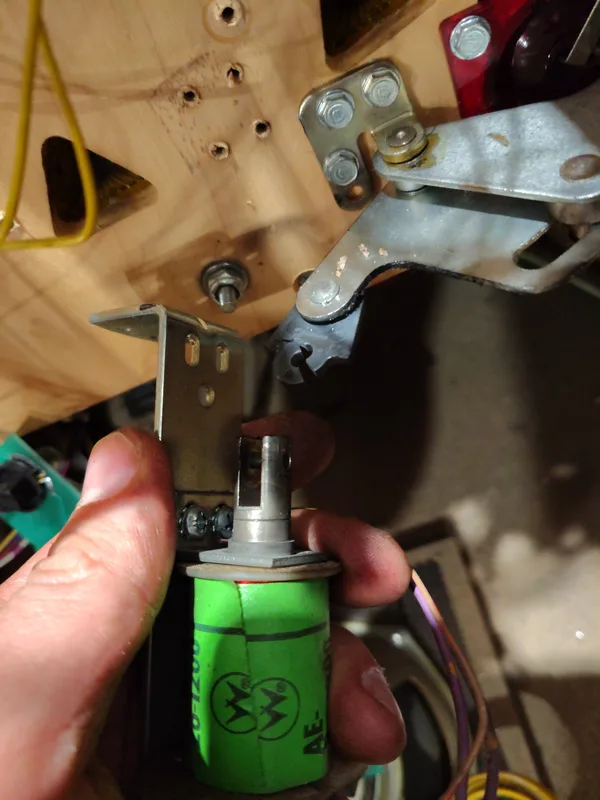

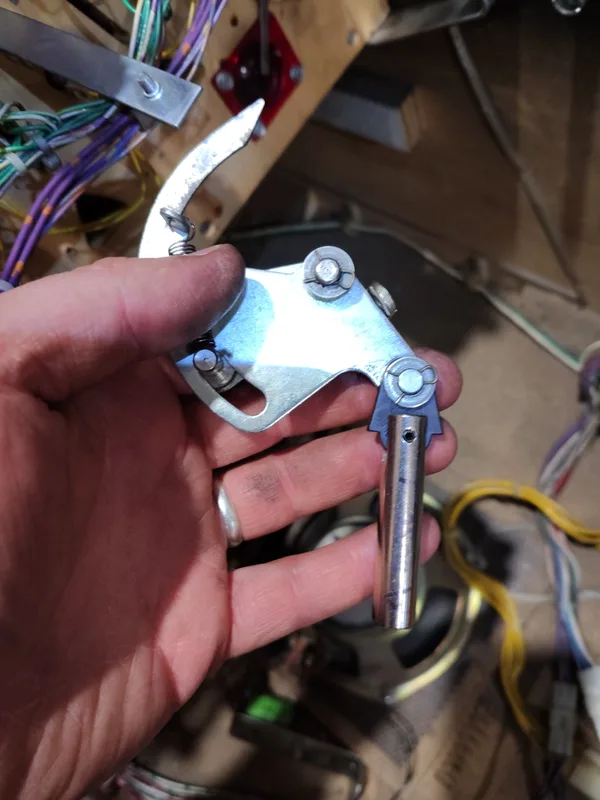

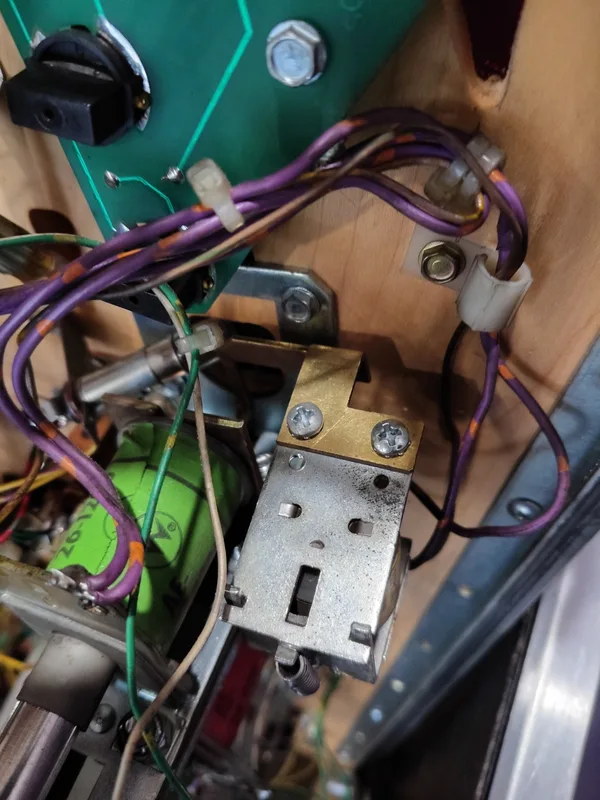

Lucky last. Balls landing in the eject hole at the top of the playfield were not coming back out. I could hear the coil trying to activate, but there was no movement at all in the assembly. I noticed the nylon link was broken. This is surely it! Nope, even with a new link it wouldn't move. I took it apart and realised the plunger was way too long; long enough that it was hitting the coil stop when at rest. Absolutely no space for movement of the plunger, and therefore no action from the mechanism. Replaced it with the correct size plunger and it came back to life.


Back to catching fish and telling tales! 🤥
